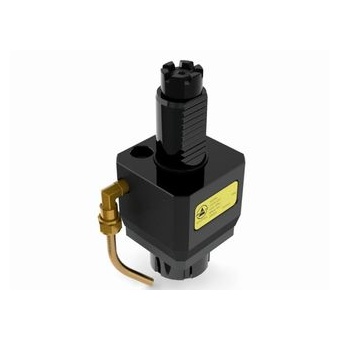

◎ VDI40-MT-ER32 Axial Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
Dry Cutting & Side Milling
Model：THB-A05-40D
Cutting Tool：Carbide Endmills D16 x 4 Flute
Material：S50C
Speed：956 rpm
Feed：320 mm/min
Ap：5 mm Ae：16 mm
Q：30 cm³/min
◎ R.P.M.：Max. 6,000 RPM
| Model No. | A | B | C | D | E | F | G | H | I | J | N.W. (KG) |
| THB-A05-40D | 78 | 78 | 32 | 40 | 63 | 94 | 51 | 68 | ER32(3~20) | 50 | 3.3 |
Unit:mm
