◎ VDI30-MT-ER25 Radial Offset Driven Tool Holder_Int.◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.◎ Further option : 6000 RPM ...了解更多

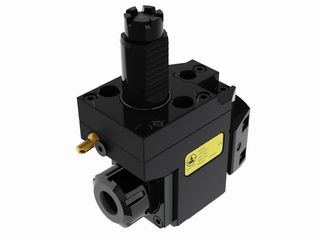

THB-D04.70-30DI VDI30-MT-ER25 径向内缩动力刀座(中心出水)



  • 描述
  • IM_EXTRA_TAB_ADD1
  • 规格

◎ VDI30-MT-ER25 Radial Offset Driven Tool Holder_Int.
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM

◎ Gear Ratio：1：1
◎ R.P.M.：Max. 4,000 RPM
◎ Internal Coolant：30 bar

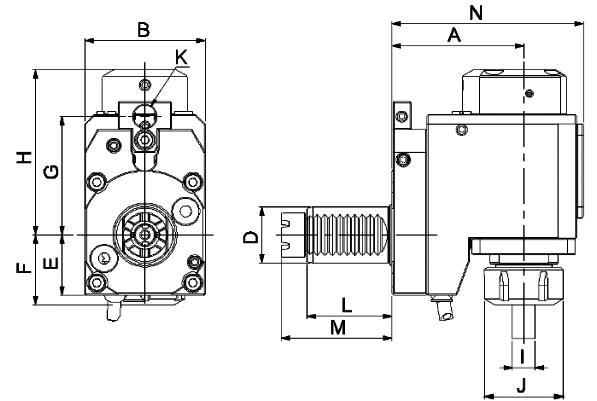

Model No. A B D E F G H I J K L M N N.W. (KG)
THB-D04.70-30DI 70 64 30 32 37 40/63 97 ER25(2~16) 42 12 45 59 101.5 4

Unit:mm
