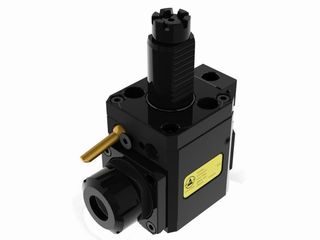

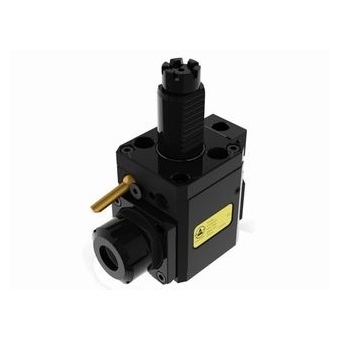

◎ VDI30-MT-ER32 Radial Driven Tool Holder◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.◎ Further option : 6000 RPM

THB-B05.65-30D VDI30-MT-ER32 径向动力刀座



下载 DWG PDF
  • 描述
  • IM_EXTRA_TAB_ADD1
  • 规格

◎ VDI30-MT-ER32 Radial Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM

◎ Gear Ratio：1：1
◎ R.P.M.：Max. 4,000 RPM

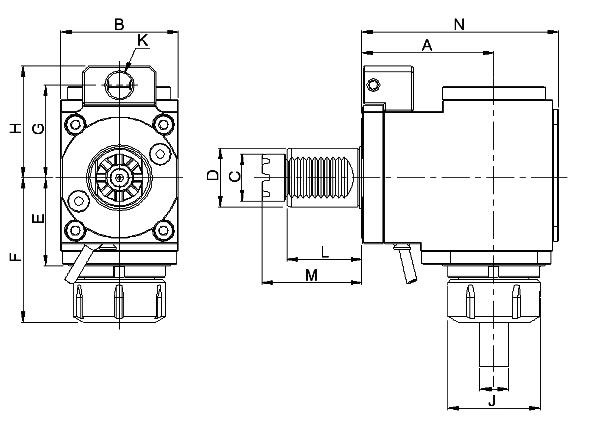

Model No. A B C D E F G H I J K L M N N.W. (KG)
THB-B05.65-30D 65 64 24 30 47 75 40/63 50/73 ER32(3~20) 50 12 45 59 101 3.7

Unit:mm
