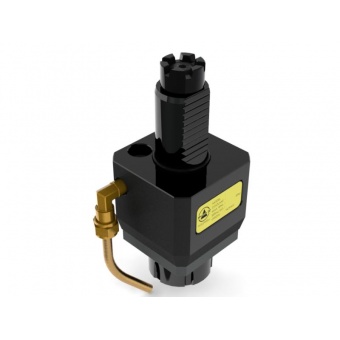

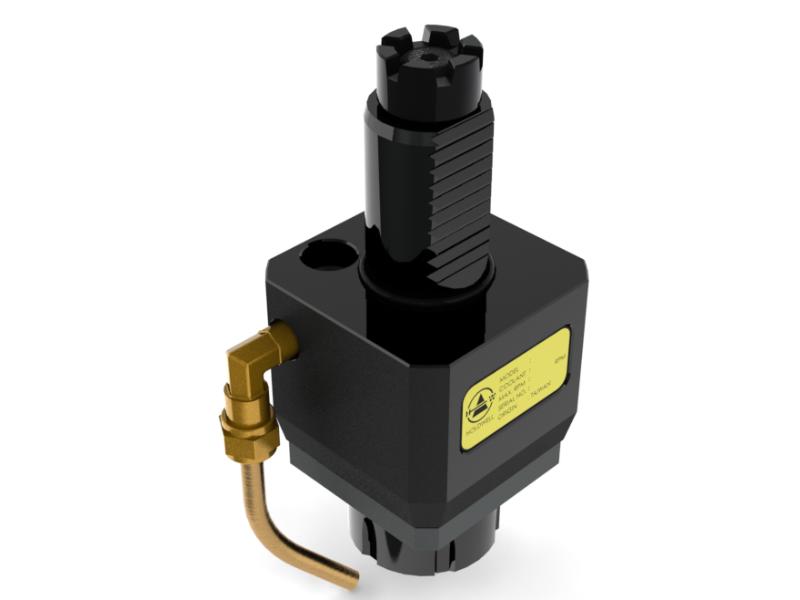

◎ VDI30-MT-ER25 Axial Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ R.P.M.：Max. 6,000 RPM
| Model No. | A | B | C | D | E | F | G | H | I | J | N.W. (KG) |
| THB-A04-30D | 62 | 62 | 24 | 30 | 60.5 | 87 | 45 | 59 | ER25(2~16) | 42 | 1.9 |
Unit：mm
