◎ VDI50-5480-ER40 Axial Driven Tool Holder ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 5480. ◎ ER Collet is according to DIN6499. ◎ For left hand and right hand turret. ...了解更多

THB-A06-50B VDI50-5480-ER40 轴向动力刀座



下载 DWG PDF
  • 描述

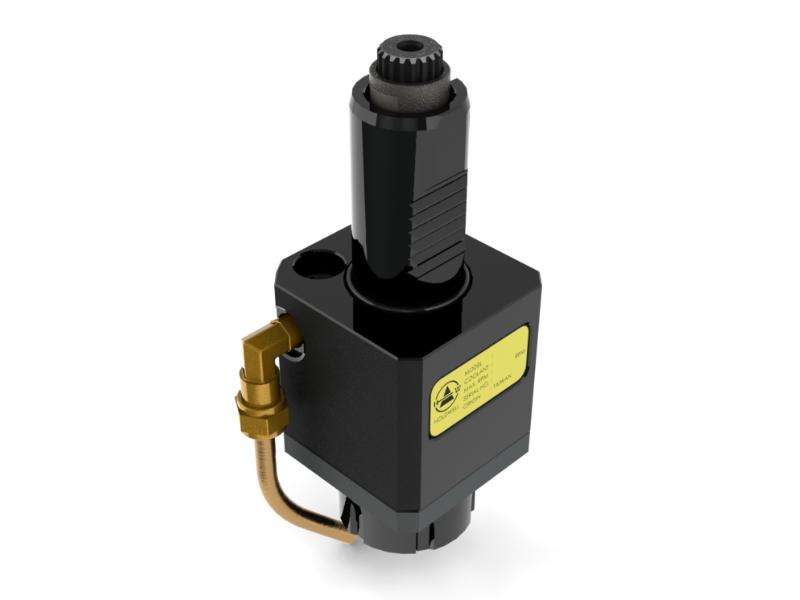

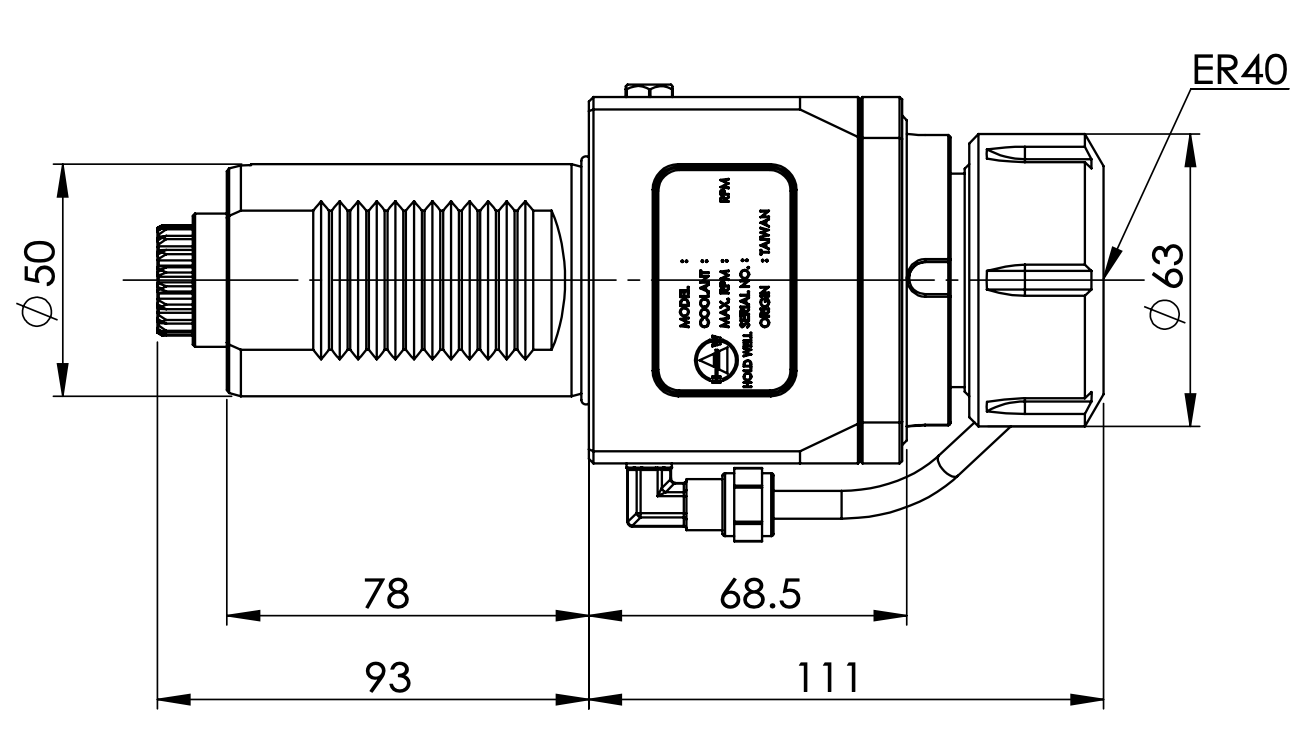

◎ VDI50-5480-ER40 Axial Driven Tool Holder

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 5480.

◎ ER Collet is according to DIN6499.

◎ For left hand and right hand turret.
