◎ VDI40-5480-ER32 Radial Offset Driven Tool Holder_Int. 100mm ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 5480. ◎ ER Collet is according to DIN6499. ◎ For left hand and right hand turret. ...了解更多

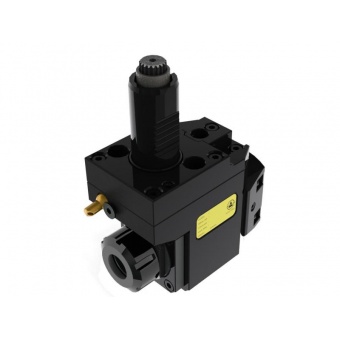

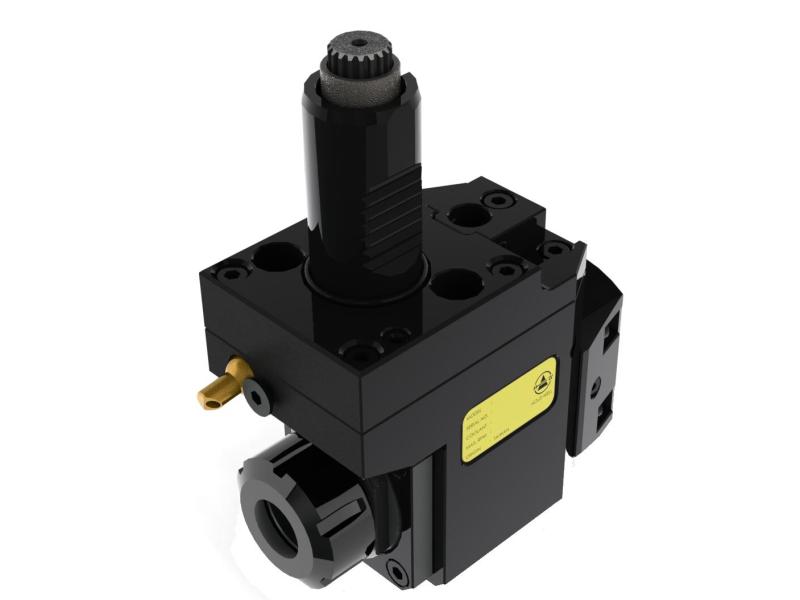

THB-D05.100-40BI VDI40-5480-ER32径向内缩动力刀座(中心出水)



下载 DWG STP PDF
  • 描述

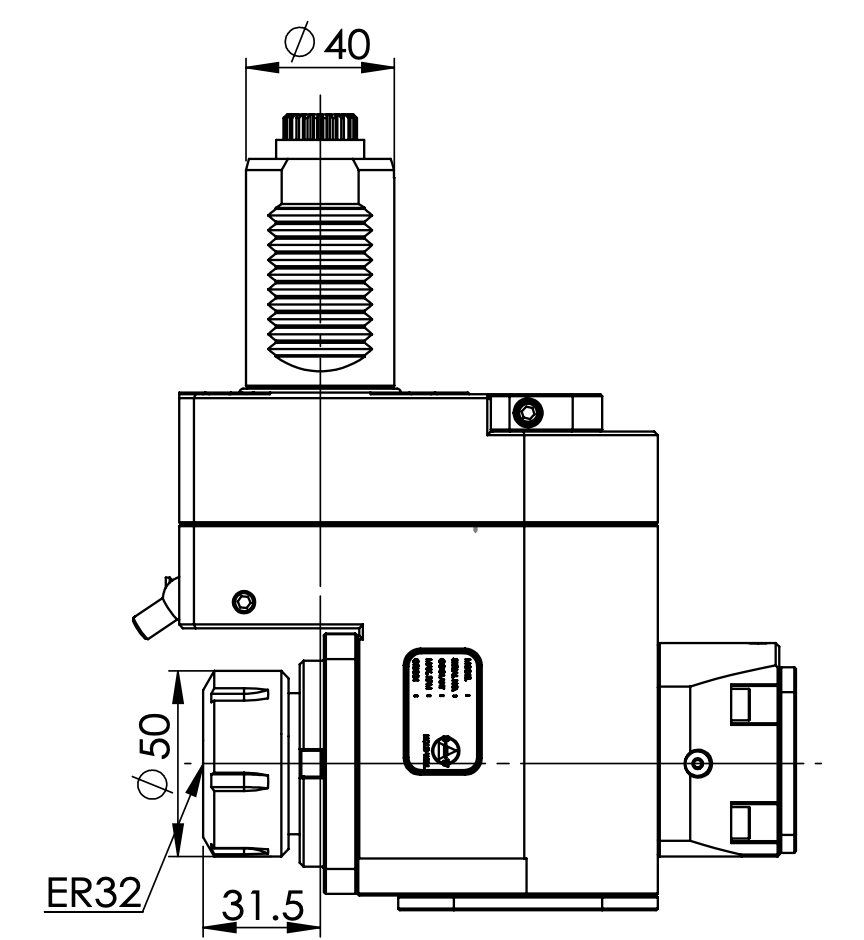

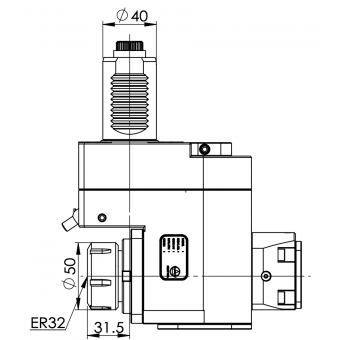

◎ VDI40-5480-ER32 Radial Offset Driven Tool Holder_Int. 100mm

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 5480.

◎ ER Collet is according to DIN6499.

◎ For left hand and right hand turret.
