◎ VDI40-5480-ER32 Radial Offset Driven Tool Holder 100mm ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 5480. ◎ ER Collet is according to DIN6499. ◎ For left hand and right hand turret. ...了解更多

THB-D05.100-40B VDI40-5480-ER32 径向内缩动力刀座



下载 DWG STP PDF
  • 描述

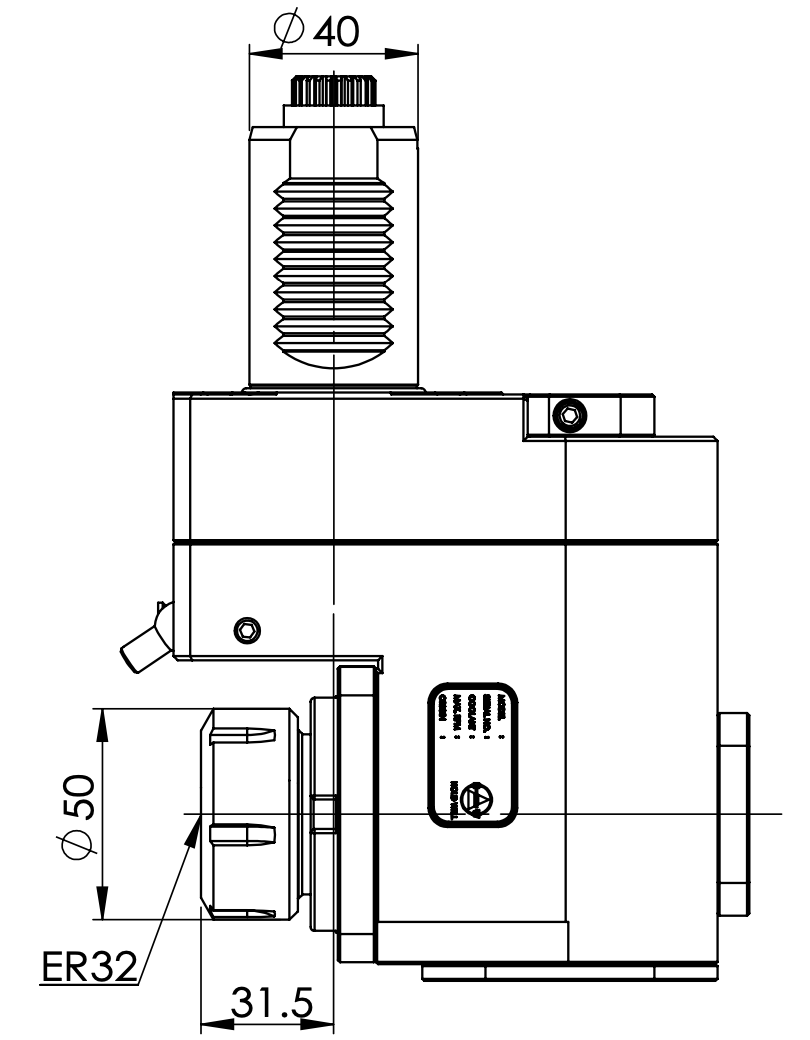

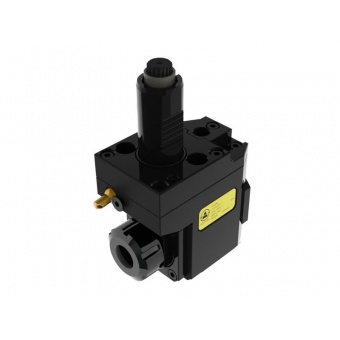

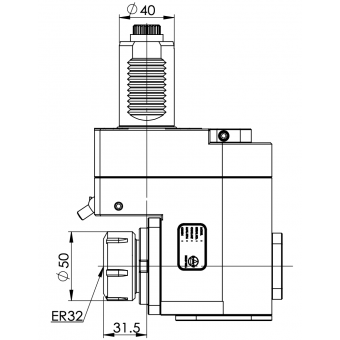

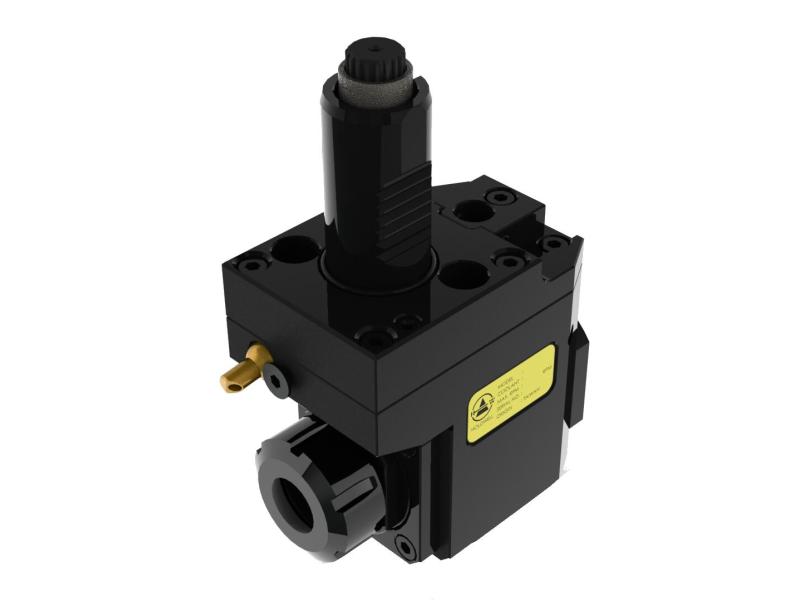

◎ VDI40-5480-ER32 Radial Offset Driven Tool Holder 100mm

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 5480.

◎ ER Collet is according to DIN6499.

◎ For left hand and right hand turret.
