◎ VDI30-5480-ER25 Radial Driven Tool Holder 55mm ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 5480. ◎ ER Collet is according to DIN6499. ◎ For left hand and right hand turret. ◎ Further option : 6000 RPM ...了解更多

THB-B04.55-30B VDI30-5480-ER25 径向动力刀座



下载 DWG STP PDF
  • 描述

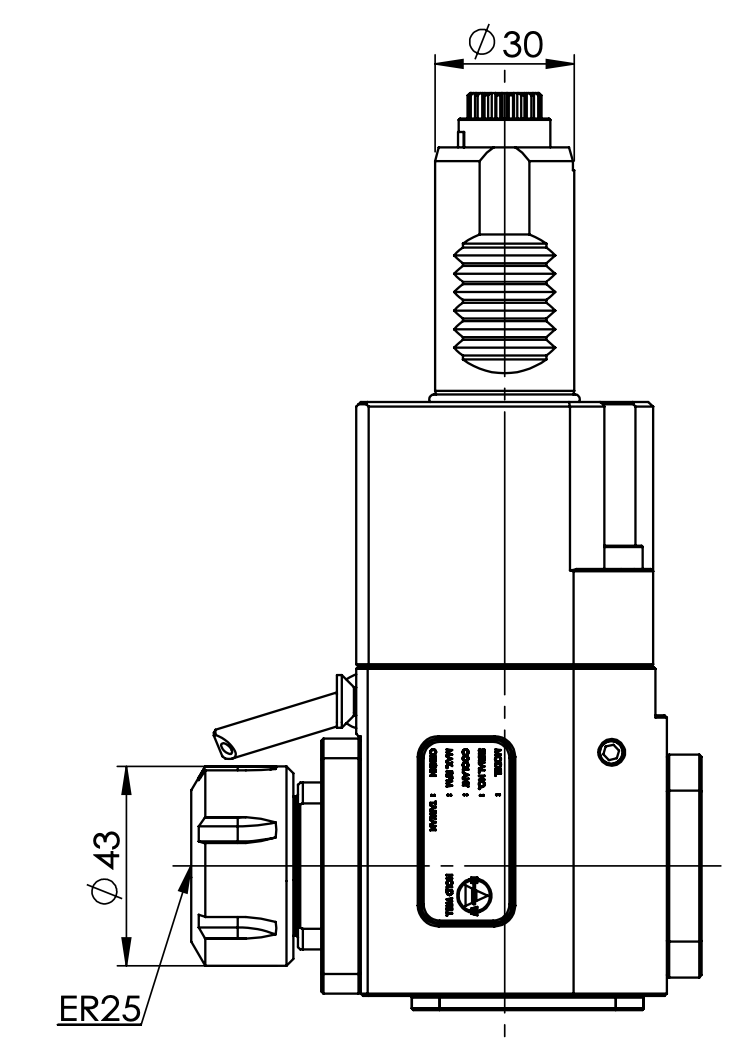

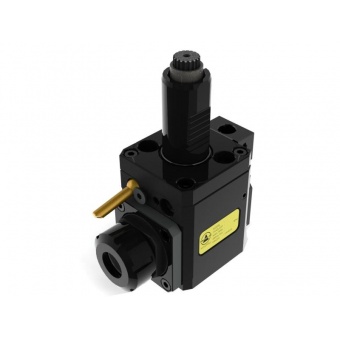

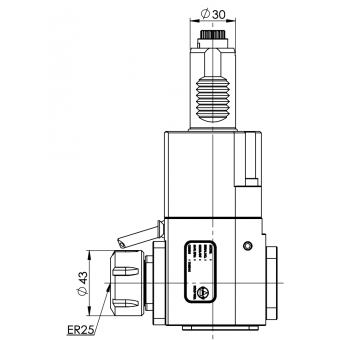

◎ VDI30-5480-ER25 Radial Driven Tool Holder 55mm

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 5480.

◎ ER Collet is according to DIN6499.

◎ For left hand and right hand turret.

◎ Further option : 6000 RPM
