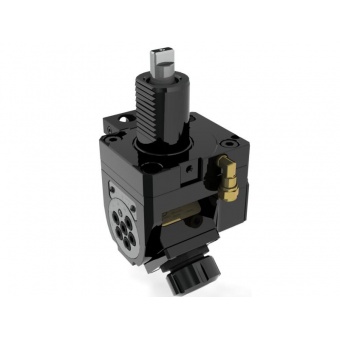

◎ VDI40-1809-ER25 B Axial Swivel Driven Tool Holder ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 1809. ◎ ER Collet is according to DIN 6499. ◎ For left hand and right hand turret. ◎ Cutting angle can be set from +90 to -90 degree for ...了解更多

THB-E04.65-40A VDI40-1809-ER25 B 万向动力刀座



  • 描述

◎ VDI40-1809-ER25 B Axial Swivel Driven Tool Holder

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 1809.

◎ ER Collet is according to DIN 6499.

◎ For left hand and right hand turret.

◎ Cutting angle can be set from +90 to -90 degree for various applications.

◎ Optional Accessories : Hook Spanner.
