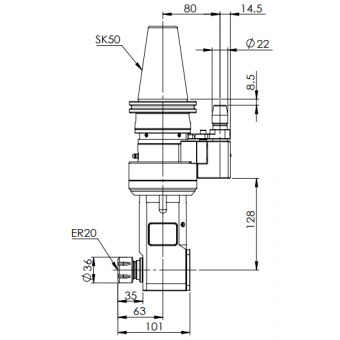

◎ SK50-ER20 90° Angle Head-Longer (AHD Type)
◎ Run-out：0.002 mm
◎ Material：Ductile Cast Iron
◎ R.P.M.：Max. 4000 RPM
◎ Torque：Max. 25 Nm
◎ Drilling：Max. 12 mm
◎ Tapping：Max. M10
◎ Gear Ratio：1：1
◎ Standard Accessory：Hook Spanner ER Wrench, ER Nut
◎ Output Rotation：Reverse to Input Rotation

◎ The body is made of Ductile Cast Iron.
◎ High strength steel; stable machining.
◎ The AHD series is suitable for firm and fast face milling.
◎ Can be automatic tool changed. Increases productivity.
