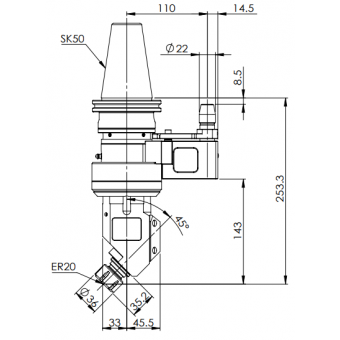

◎ SK50-ER20 45° Angle Head (AHD Type)
◎ Run-out：0.002 mm
◎ Material：Ductile Cast Iron
◎ R.P.M.：Max. 4000 RPM
◎ Torque：Max. 15 Nm
◎ Drilling：Max. 10 mm
◎ Tapping：Max. M8
◎ Gear Ratio：1：1
◎ Standard Accessory：Hook Spanner, End Wrench, ER Nut
◎ Output Rotation：Reverse to Input Rotation

◎ The 45 degree design ensures 45 degree drilling, milling and curved surface processing.
◎ Can be automatic tool changed. Increases productivity.
