◎BT40-ER25 90° Aluminum Angle Head (AHM Type)◎Run-out：0.002 mm◎Material：Aerospace Aluminum Alloy◎R.P.M.：Max. 6000 RPM◎Torque : Max. 15 Nm◎Drilling : Max. 12 mm◎Tapping : Max. M8◎Gear Ratio：1：1◎Standard Accessory：Open End Wrench, ER Wrench, ER Nut◎Output Rotation : R ...了解更多

AHM-BT40-A04.180G 铝合金90度角度头



  • 描述
  • IM_EXTRA_TAB_ADD1

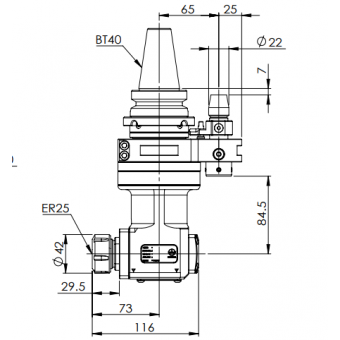

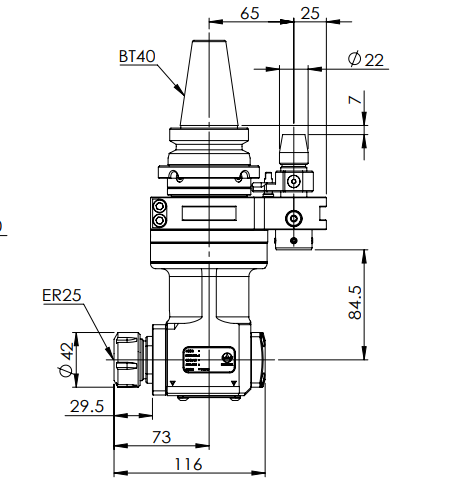

◎BT40-ER25 90° Aluminum Angle Head (AHM Type)
◎Run-out：0.002 mm
◎Material：Aerospace Aluminum Alloy
◎R.P.M.：Max. 6000 RPM
◎Torque : Max. 15 Nm
◎Drilling : Max. 12 mm
◎Tapping : Max. M8
◎Gear Ratio：1：1
◎Standard Accessory：Open End Wrench, ER Wrench, ER Nut
◎Output Rotation : Reverse to Input Rotation

◎6000 rpm high speed processing. Increases machining efficiency.
◎Compact and lighter body design is suitable for machines with light-load magazine and high speed ATC system.
◎Can be automatic tool changed. Increases productivity.
◎Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
