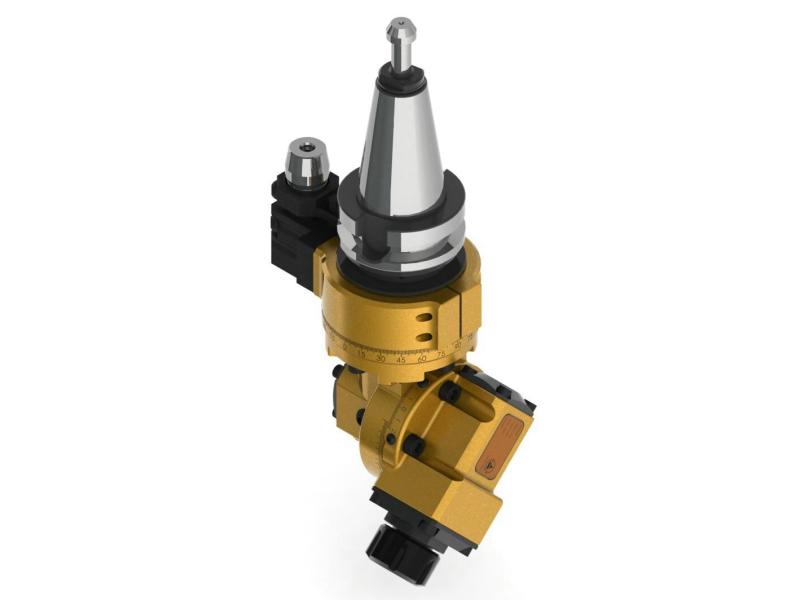

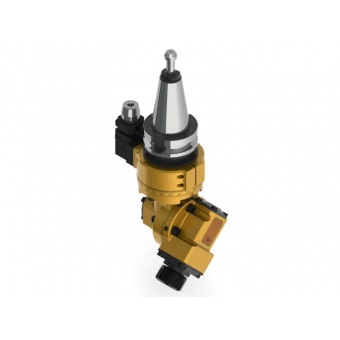

◎ BT40-ER20 Light Angle Head-Universal (AHL Type)
◎ Run-out：0.002 mm
◎ Material：Alloy Steel
◎ R.P.M.：Max. 6000 RPM
◎ Torque：Max. 9 Nm
◎ Drilling：Max. 10 mm
◎ Tapping：Max. M6
◎ Gear Ratio：1：1
◎ Standard Accessory：Open End Wrench, ER Wrench, ER Nut
◎ Output Rotation：Same as Input Rotation

◎  Cutting angle can be set from 0°~ ±120°for various applications.
◎  Compact design provides extra strength, oil-proof, dust-proof, and duration.
◎  Can be automatic tool changed. Increases productivity.
◎  Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
