◎ BT30-ER16 Light Angle Head (AHL Type)◎ Run-out ： 0.002 mm◎ Material ： Alloy Steel◎ R.P.M.：Max. 8000 RPM◎ Torque：Max. 12 Nm◎ Drilling：Max. 10 mm◎ Tapping：Max. M8◎ Gear Ratio ： 1：1◎ Standard Accessory： M Type Wrench, Pin Wrench, ER Nut◎ Output Rotatio ...了解更多

AHL-BT30-A1.65G 轻量型90度角度头



  • 描述
  • IM_EXTRA_TAB_ADD1

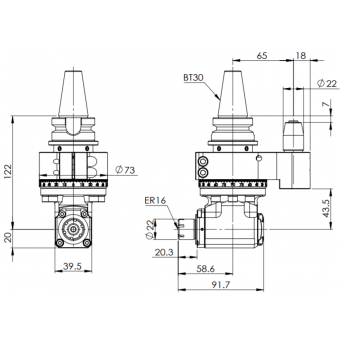

◎ BT30-ER16 Light Angle Head (AHL Type)
◎ Run-out ： 0.002 mm
◎ Material ： Alloy Steel
◎ R.P.M.：Max. 8000 RPM
◎ Torque：Max. 12 Nm
◎ Drilling：Max. 10 mm
◎ Tapping：Max. M8
◎ Gear Ratio ： 1：1
◎ Standard Accessory： M Type Wrench, Pin Wrench, ER Nut
◎ Output Rotation ： Reverse to Input Rotation



◎  Compact and lighter body design is suitable for drilling, milling, and tapping application.
◎  Can be automatic tool changed. Increases productivity.
◎  Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
